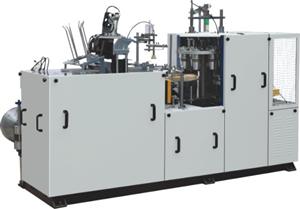

MB-S22 Ultrasonic Paper Cup Machine

Description

MB-S22 ultrasonic double sides PE coated paper cup making machine is an automatic molding machine with multi-station. Main parts of it include ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter. This ultrasonic paper cup machine is used to make paper cups, coffee cups, ice cream cups and other disposable cone type food containers through a series of successive process, such as automatic paper feeding, sealing, oiling bottom punching, heating, knurling, hemming, etc.



Features

1.MB-S22 ultrasonic double sides PE coated paper cup making machine can be used to produce both single and double PE coated paper cups.

2.Compared to our MB-S16 ultrasonic double PE coated paper cup machine, MB-S22 is more suitable for making taller cups whose height varies from140 mmto165 mm.

3.Ultrasonic Welding Function: This ultrasonic paper cup machine also has ultrasonic welding function to make the cups look good and beautiful.

4.Micro-Computer System: This machine employs micro-computer system to control frequency speed-changing. With infinite speed adjustment, it is workable in power ranging from 220 V to 380 V.

5.Ultrasonic Hot-Pressing System: Ultrasonic double sides PE coated paper cup making machine adopts imported ultrasonic hot-pressing system for cup forming. It will not damage the printing on the paper cup and makes paper cup with tidy, smooth and reliable adhesive qualities.

6. Fully Automatic: This ultrasonic paper cup machine is fully automatic for paper cup forming, such as air-suction paper feeding, container wall forming, adhering, knurling, paper-lips forming, etc.

7.It has optically controlled contact-less switch, which automatically controls the machine and secures the safety of both the machine and operator.



Parameters of MB-S22 Ultrasonic Paper Cup Machine

Paper Cup Size	22 to 32 (oz)
Speed	35 to 40 (pcs/min)
Paper Cup Top Diameter	Min.70 mm, Max.110 mm
Paper Cup Bottom Diameter	Min.35 mm, Max.75 mm
Paper Cup Height	Min.140 mm, Max.165 mm
Raw Material	180 to 380 (gsm), Single or Double PE Coated Paper
General Power	7 kW
Electricity	380 V 3 phases or 220 V 1 phase
Machine Weight	1600 kg
Measurement of the Machine	2.8 × 1.2 × 1.8 (m)



Maintenance

1.Please keep this double sides PE coated paper cup machine clean.

2. Regular oil lubrication for ultrasonic paper cup machine is needed.



Package

Products are packaged by wooden case and transported by sea.



Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of ultrasonic paper cup making machines inChina. In addition to paper cup machine, our company also offers paper bowl machine, paper bucket machine, paper plate machine, die cutting machine, cup lid machine, flexo printing machine, etc. Our double sides PE coated paper cup machines are exported toJordan,Algeria,Qatar,India,Indonesia,Taiwan,Libya,Russia, and so on.
