MB-A12 Single PE Coated Paper Cup Making Machine

Description
MB-A12 single PE coated paper cup machine is an automatic paper cup making machine. Main components include gear box, chain, inverter, knurling set, top rolling set, speed reducer, heating bar and bottom heating station. This paper cup machine produces paper cups through successive processes of automatic paper feeding, side sealing, top oiling, bottom punching, bottom pre heating, bottom folding, bottom knurling, top curling and cup discharging. It is ideal equipment for manufacturing single PE coated paper cups. Paper cups produced by single PE coated paper cup machine can be used to hold tea, coffee, milk, ice cream, juice, water, etc.

Features
1. Easy Operation
2. Stable Performance
3. Small Size
4. High Efficiency

Parameters of MB-A12 Single PE Coated Paper Cup Machine
Paper Cup Size 2.5 to12 (oz) / 80 to 330 (ml)
Production Speed 45 to 50 (pcs/min)
Paper Cup Top Diameter 45 to 104 (mm)
Paper Cup Bottom Diameter 35 to 75 (mm)
Paper Cup Height 35 to 110 (mm)
Raw Material 170 to 230 (Grams per Square Meter) Single PE Coated Paper
General Power 4.8 kW
Electricity 380 V 3 Phases or 220 V 1 Phase
Weight 1500 kg
Measurement 2.6 × 1.22 × 1.7 (m)

Attentions
1. MB-A12 single PE coated paper cup machine is suitable for making cups from 2oz to 12oz.
2. If you require bigger cups, please choose our paper cup making machine MB-S16 or MB-S22.
3. Please lubricate the equipment regularly.

Package
Products are packaged with wooden box and delivered by sea.

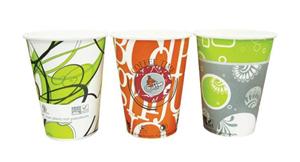

Paper cup making machine is ideal equipment for manufacturing paper tea cup, paper coffee cup, advertising paper cup, ice cream cup or other disposable cone type paper food containers. Paper cups produced by Mingbo single PE coated paper cup machine are safe, healthy, lightweight and convenient to use, so they are widely used in public places, hotels, restaurants, etc.
